CCDRV75RF

75W RF Driver

Product data

Warranty
5 years
IP Rating
IP20
Input
220-240V AC
Electric Class
2
Colour / Finish
White
Wattage Range
75W Max.
Dimmable Option
None

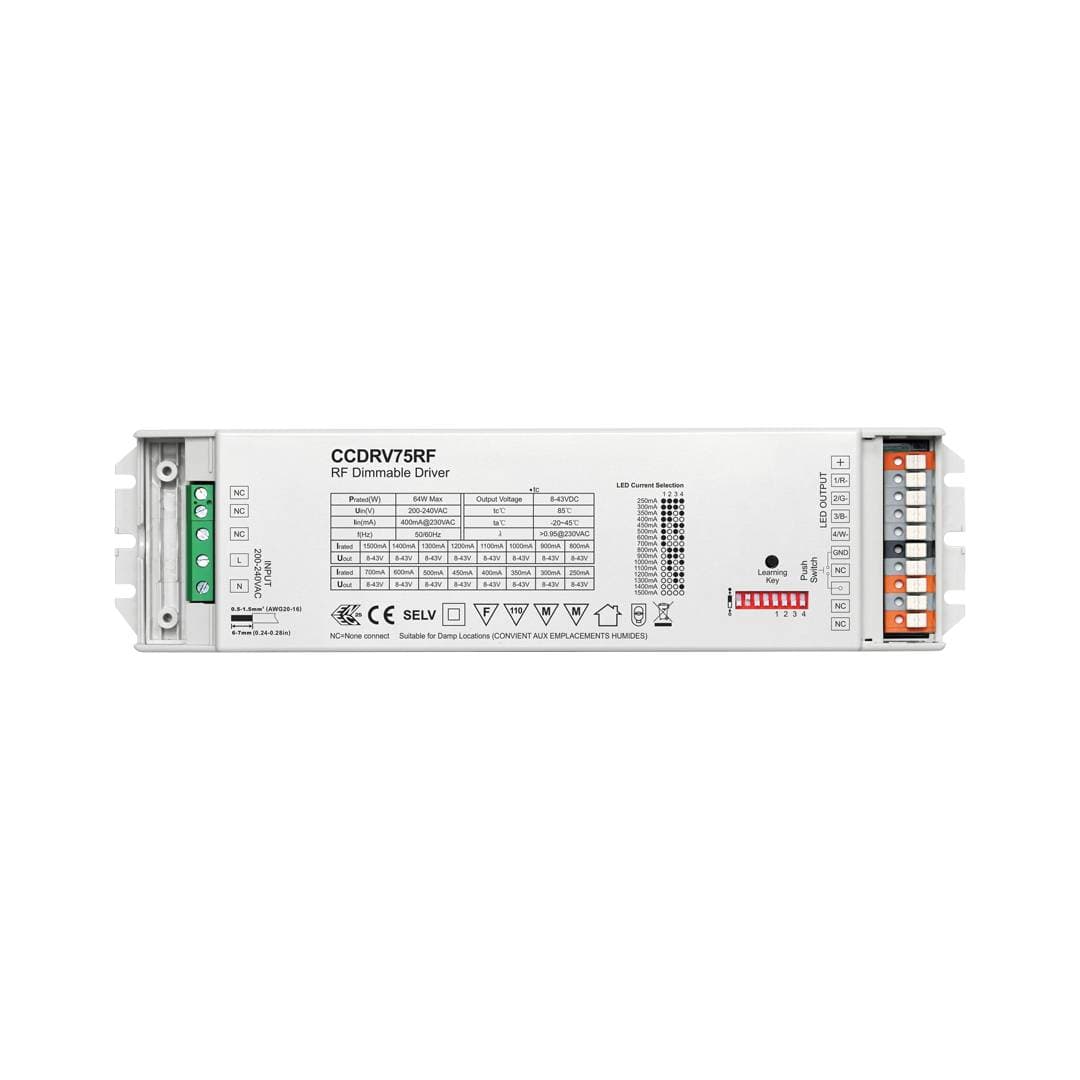

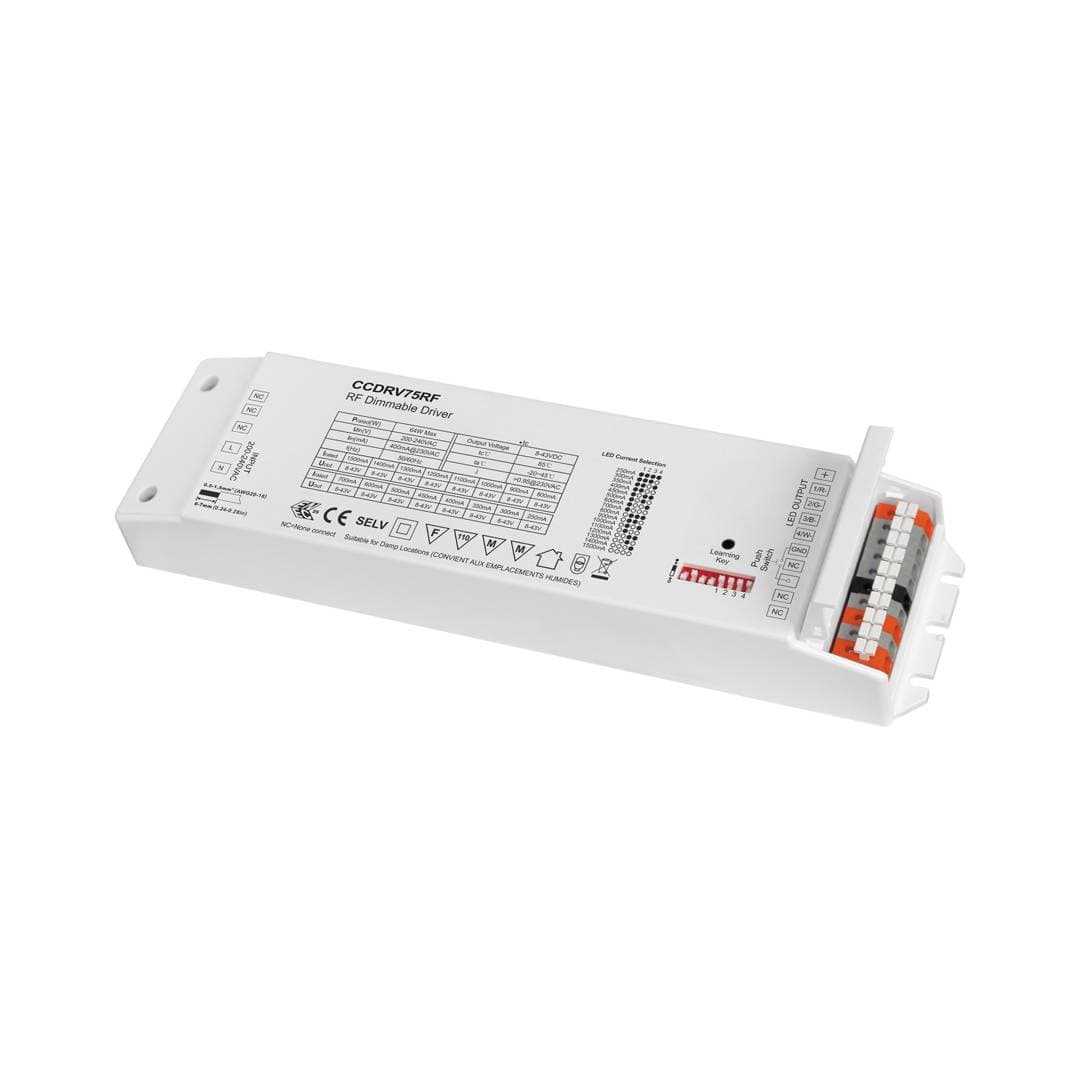

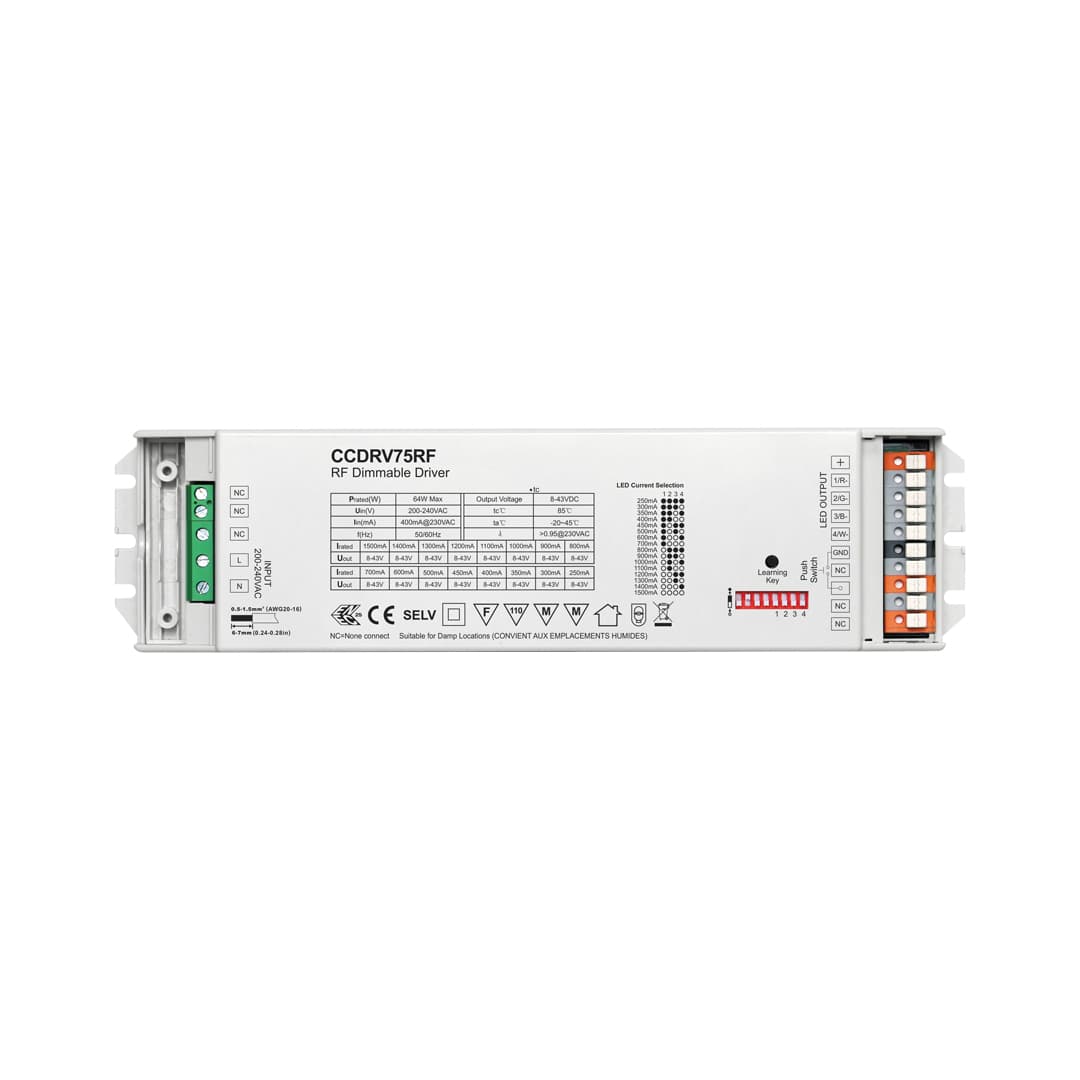

About the CCDRV75RF

The All-in-One Driver (RF) for RGBW/RGB systems opens up a world of dynamic colour! This versatile unit simplifies control and power, providing a constant 24V DC output to your LED lights. It features advanced RF signal reception and seamlessly integrates with compatible wireless systems, allowing for easy control. The driver has four independent channels for red, green, blue, and optional white. Multiple control inputs provide flexibility for different control setups. Each channel has a powerful 4.16A current capacity, but the total current output is limited to 4.16A total. For large installations with multiple zones and colour cycling requirements, Power Repeaters (PR3002) are required in conjunction with the All-in-One Driver (RF). This all-in-one solution allows you to create stunning and dynamic lighting effects, ideal for a variety of applications.

Features & Benefits

All-in-one Driver for RGBW/RGB Systems

Selectable Voltage by dips (8-43V)

Receives RF signal

4 channel output Constant Current (RGBW)

Multiple control inputs

Works with 350mA to 1500mA & 8-43V products

Power repeaters (PR3011) are required for RF installations with multiple zones that want to colour cycle. Requires driver.
