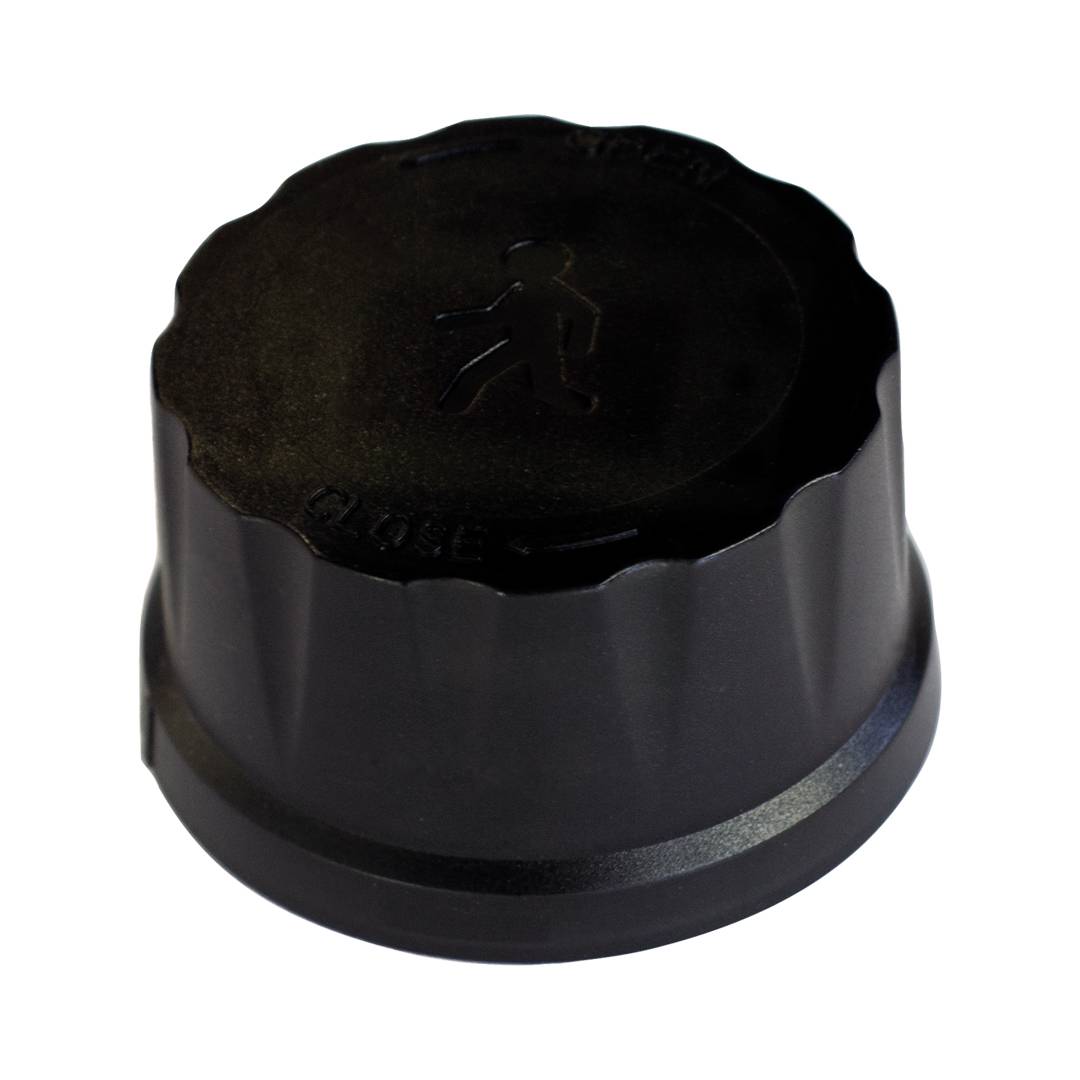

Daylight Sensor

Product code: HBDLS

About the Daylight Sensor

Daylight harvesting sensor with photocell.  For increased lighting efficiency, the Daylight harvesting sensor ensures that the Area Bay luminaire is only activated when required. Quick and easy to install, the sensor slots into the centre of the luminaire using the Zhaga socket.  Simply set the required Lux level, and when the ambient brightness drops below the threshold, the light is activated.

Features & Benefits

Plugs into the centre of the Area Bay luminaire using the Zhaga socket

Daylight harvesting Default is Options - 30Lux/50Lux/80Lux/120Lux 200Lux/250Lux/300Lux/350Lux 400Lux

Alternately, press 'Scene' button on remote to Instead of giving a specific lux level

Photocell Lights will switch automatically ON when ambient brightness is lower than perset level and automatically OFF when ambient brightness is 10 times higher than preset level.

Daylight photocell Default is Options to have 2Lux/10Lux

Product code
HBDLS
Warranty 5 years
Input 10.5-15V DC
