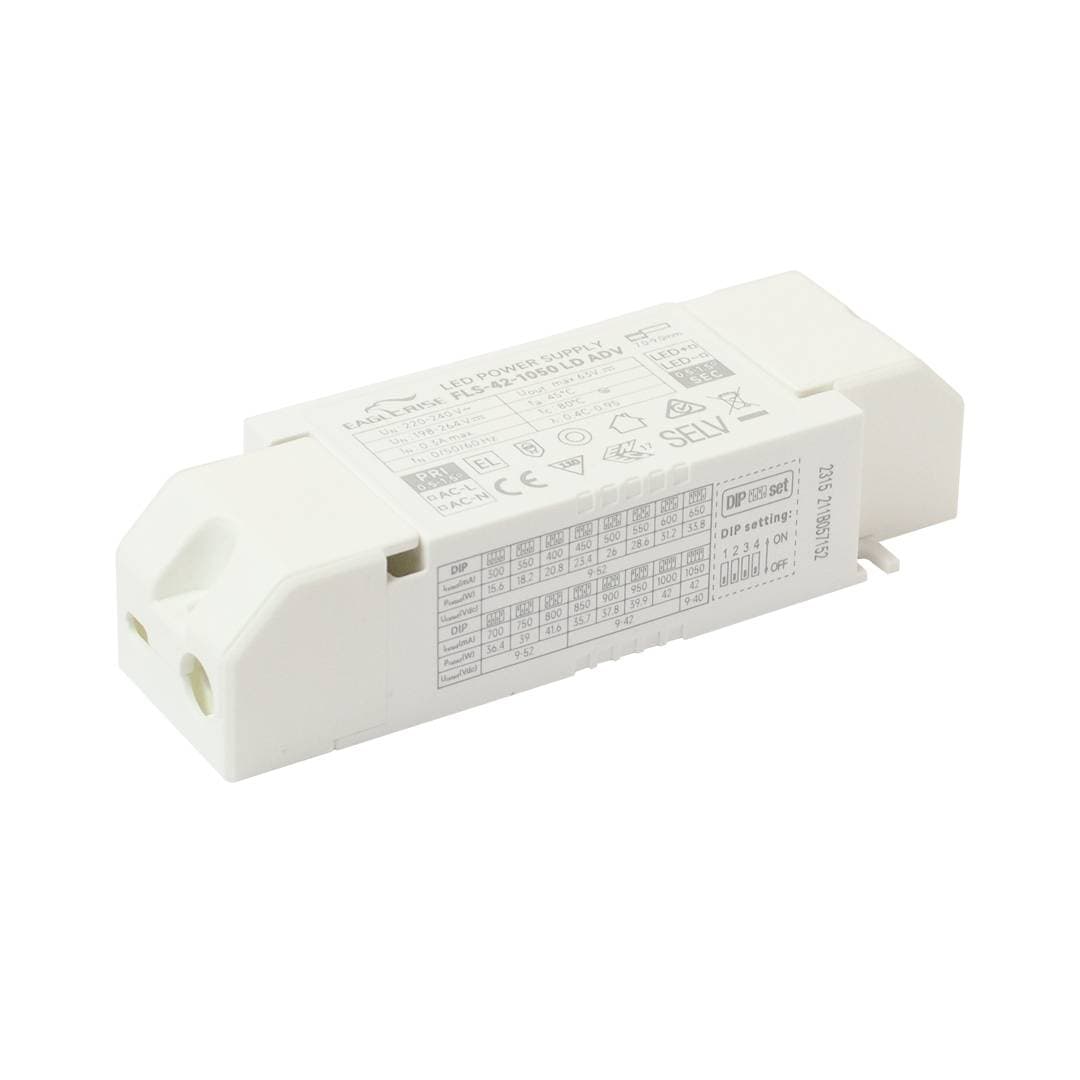

DRV3001050

42W CC Driver, IP20, 300-1050mA, Class II SELV Forward voltage range from 9 to 52Vdc

DRV3001050

42W CC Driver, IP20, 300-1050mA, Class II SELV Forward voltage range from 9 to 52Vdc

Product data

Warranty
5 years
Input
220-240V AC
Ambient Temperature
45°C
Efficiency
88%
Driver Output Voltage
9-52VDC
Driver Output Current
300-1050mA
Protection
Open Circuit, Short Circuit, Over Temperature Self Reset
Power Factor
0.95
Product Input Current
300mA

About the DRV3001050

The Solis range brings all the benefits of LED lighting to a conventional ceiling panel design, ideal for large open-plan commercial areas such as offices, shops, reception areas, schools and universities.
Using these competitively priced but superior quality LED panels instead of traditional fluorescent light sources can lead to efficiency savings of over 60%. This comes at no compromise to the quality and performance of the light, which is of utmost importance in a workplace environment. The panels are low-glare UGR <=19 for ultimate visual comfort.
Available in 600mm x 600mm, 1200mm x 600mm and 1200mm x 300mm panels. Features include IP40 rating, a plug and play connector for easy installation and market leading efficacy of up to 108lm/W. There are also non-dimmable, 1-10V and DALI dimming options for ultimate versatility.

Features & Benefits

Reduce lumen output by adjusting current using DIP switches

IP20 perfect for internal applications

Quick and easy installation with push-fit termial

Maxiumum of 42W

For use with our panels and thea pro range
