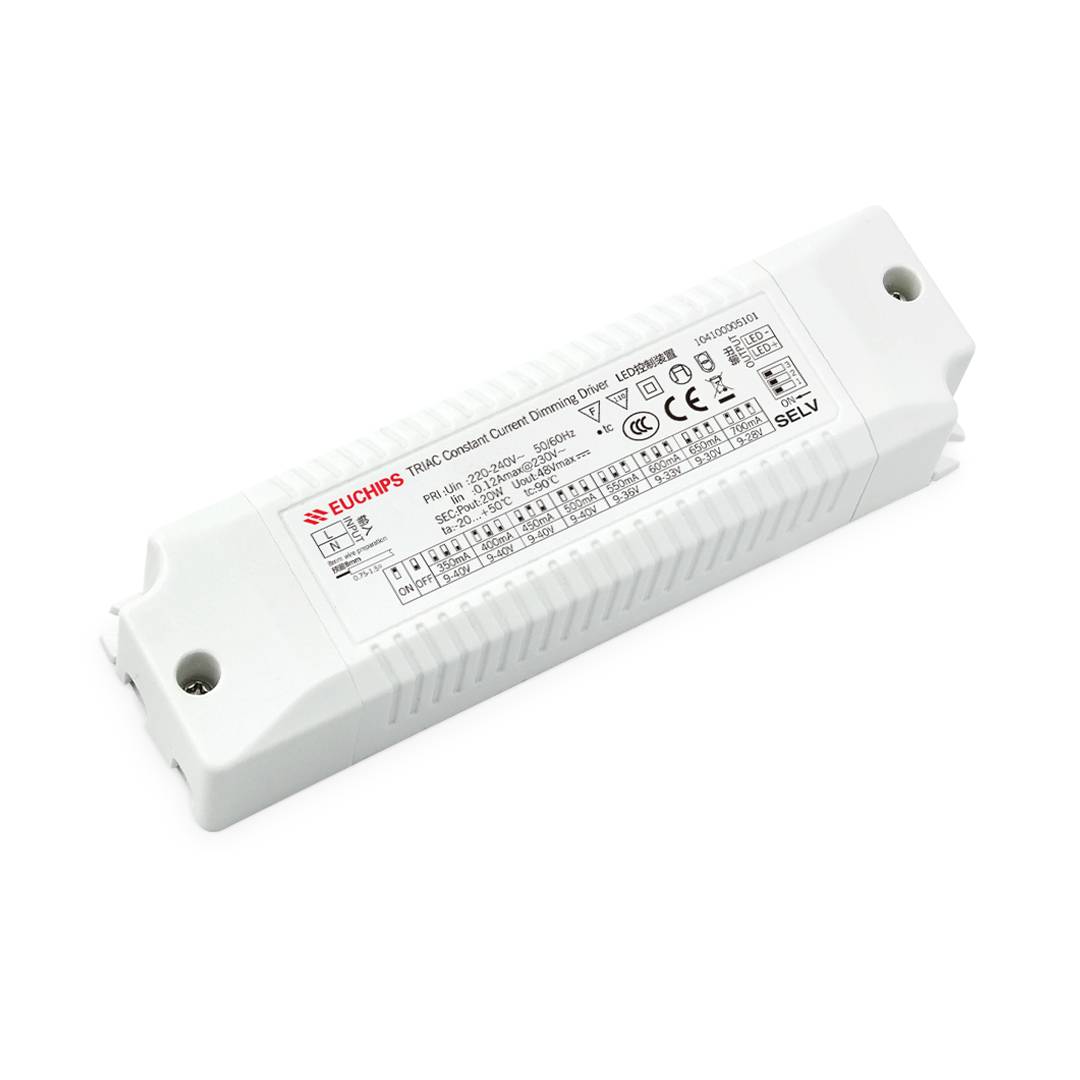

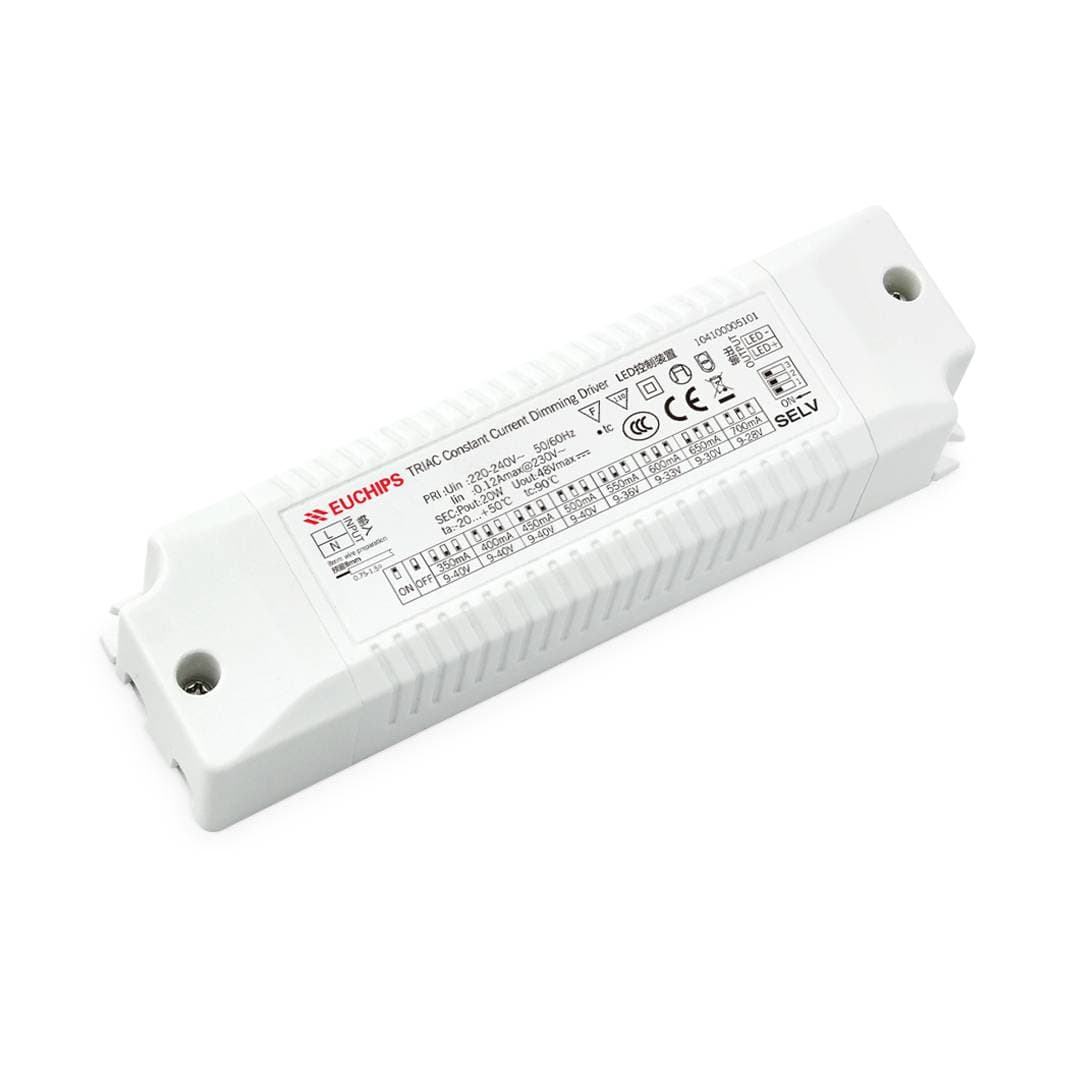

DRV350700TD

20W CC Driver, Triac Mains Dimmable 350-700mA

DRV350700TD

20W CC Driver, Triac Mains Dimmable 350-700mA

Product data

Input
220-240V AC
Ambient Temperature
50°C
Efficiency
81%
Driver Output Voltage
350mA: 9-40V - 500mA: 9-40V - 700mA: 9-29V
Driver Output Current
350-700mA
Protection
Open Circuit, Short Circuit, Over Temperature Self Reset
Power Factor
0.95
Product Input Current
350-700mA
Warranty
5 years

About the DRV350700TD

New landscape luminaire driver features 20W power output, TRIAC dimming, an IP20 rating for indoor applications, and adjustable drive currents; it provides flexibility and ease of installation. Plus, the ability to select five lumen levels without using a dimmer ensures precise light control, making it an easy and efficient choice for a variety of landscape lighting projects.

Features & Benefits

TRIAC Dimmable

Quick and easy installation

IP20 Perfect for indoor applications

Selectable drive currents through dip switches

350mA, 500mA and 700mA Selectable Settings

The ability to select 3 lumen levels and use a dimmer

Driver to power Residential Landscape luminaires
