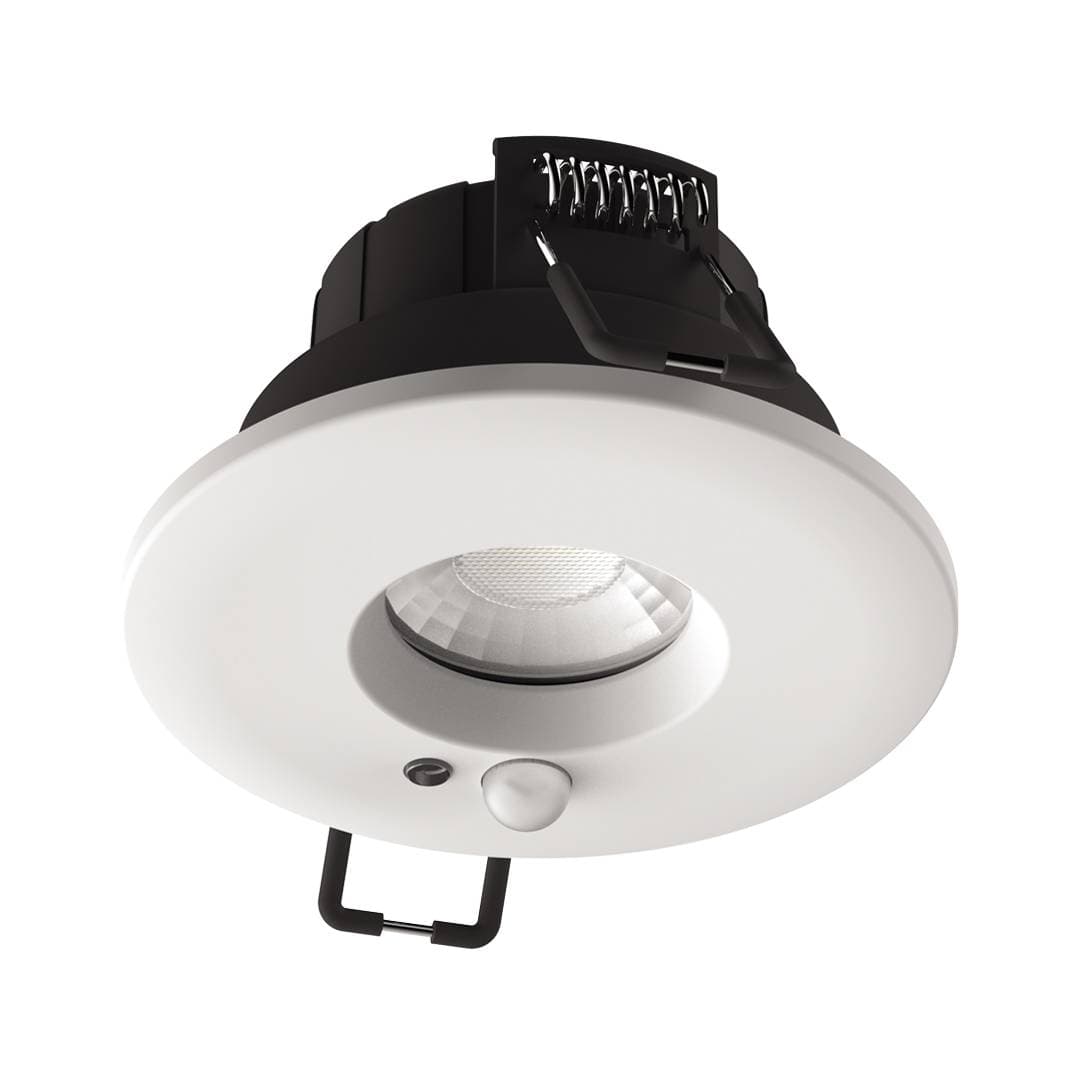

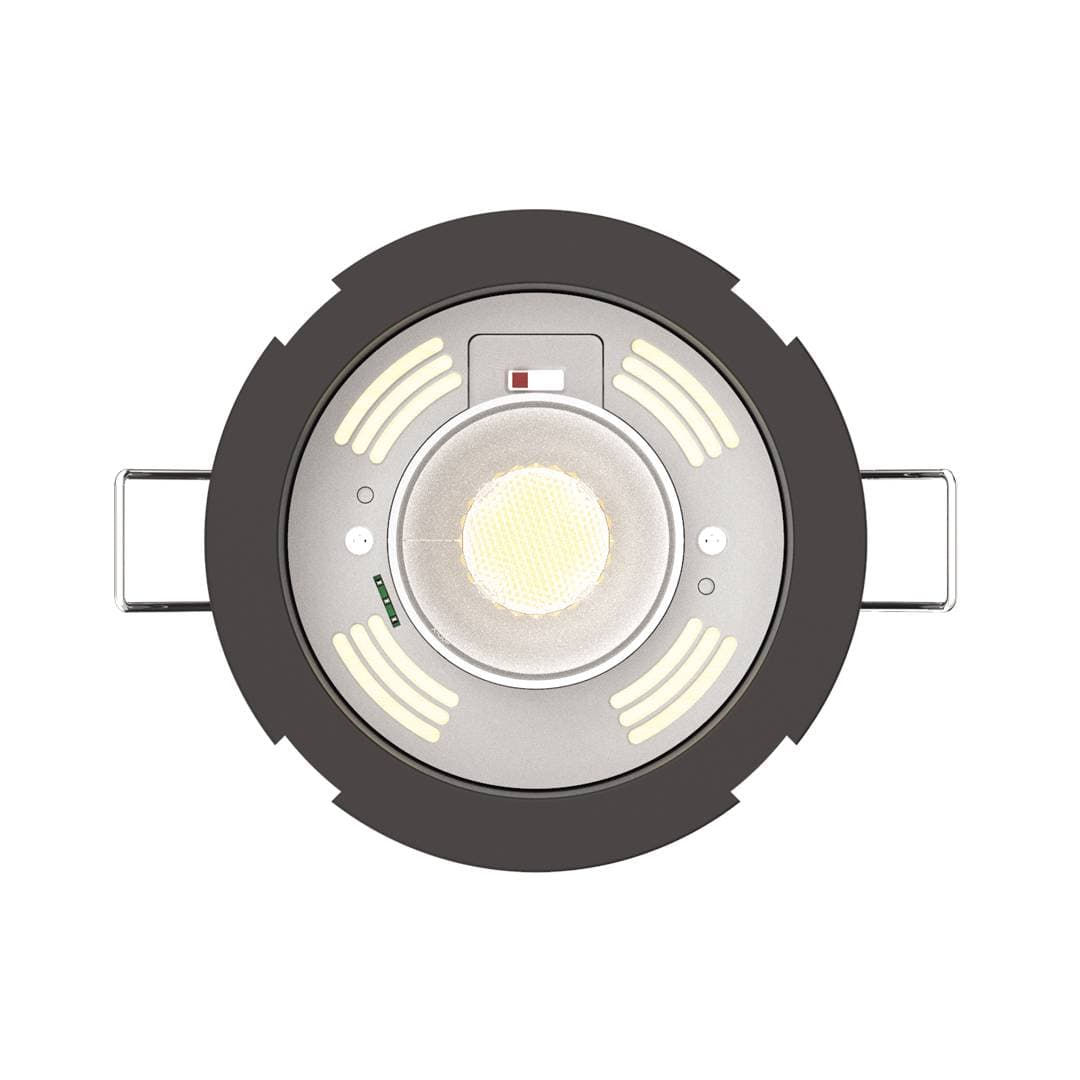

H2 Sense

Fire-rated downlight within integral PIR and switched live out functionality

H2 Sense

Fire-rated downlight within integral PIR and switched live out functionality

Product data

Warranty
5 years
CRI
CRI>80
IP Rating
IP65 (from below) IP20 (from above)
Sensor Option
None
Adjustability
Not adjustable
Input
220-240V AC
Insulation Coverable
Rolled and blown insulation
Cut Out
68-72
Bathroom Zone
1
Building Regulations
Part B, C, E, P & L
Ceiling Joist Approvals
Solid Timber 30/60/90min, I-Joist 30min, Metal Web 30min
Wattage Range
6W
CCT Range
2700K / 3000K / 4000K
Lumens Range
600-675
lm/W Range
100-113
Energy Class
E
Dimmable Option
Non-Dimmable
Emergency Option
None

About the H2 Sense

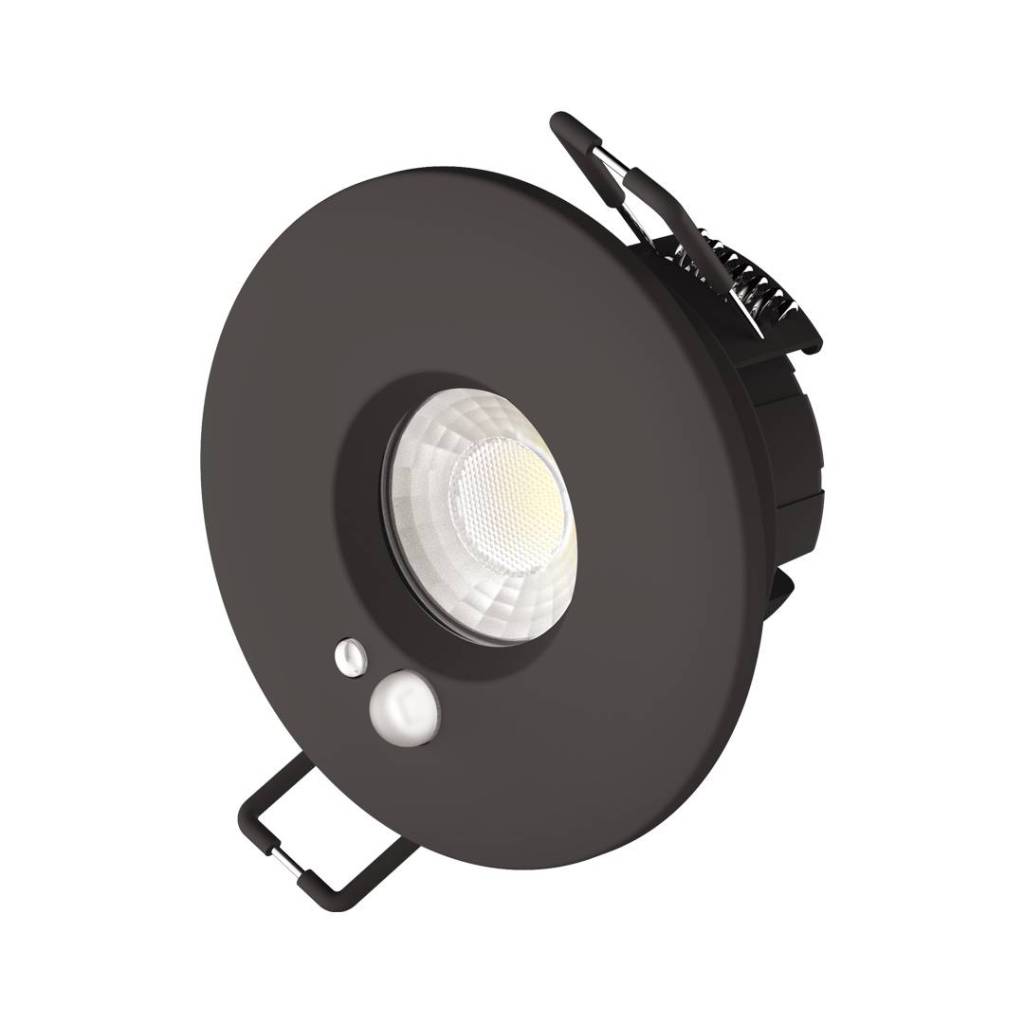

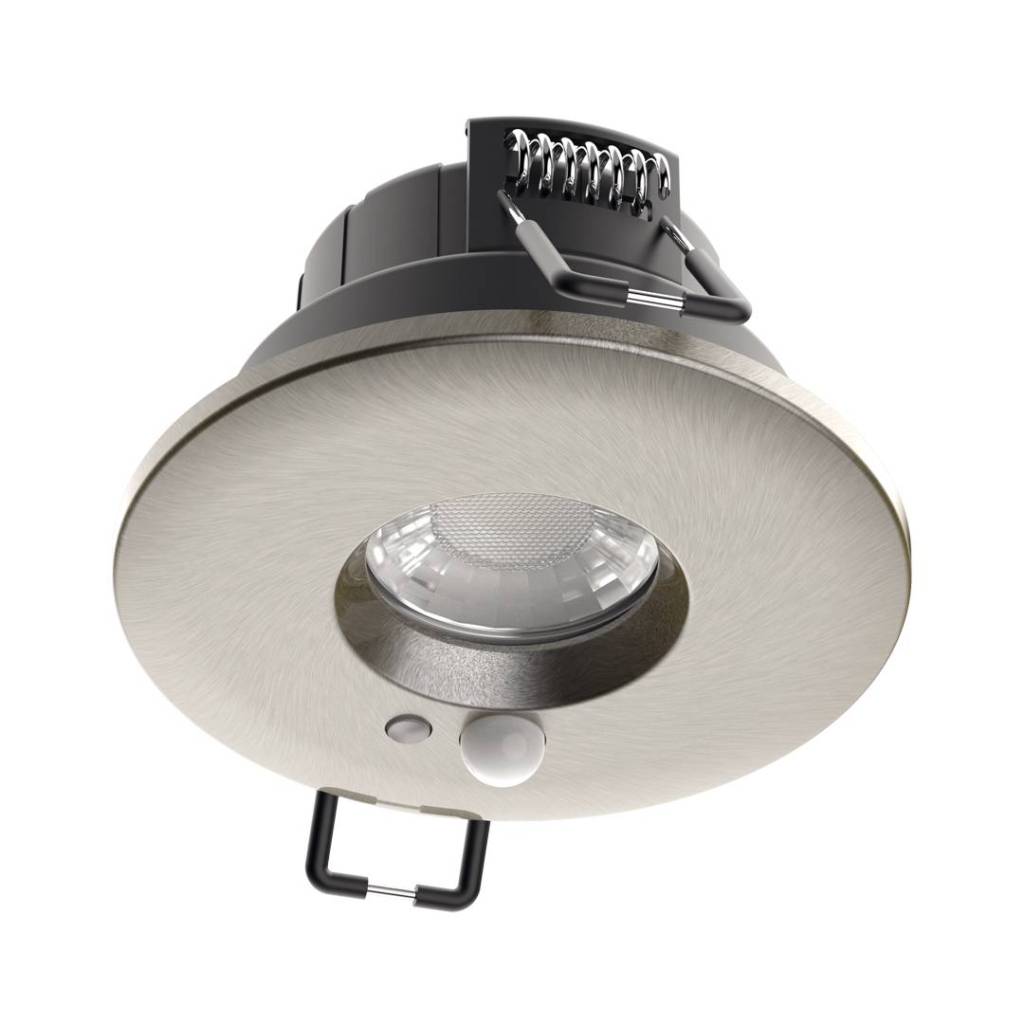

H2 Sense downlight combines smart functionality with superior performance. Switch between warm, natural, and cool white light to set the mood. The built-in PIR sensor turns off the light when you leave (adjustable hold time), and the lux level adjustment ensures that it remains off in natural daylight, saving energy. Adjust the sensor sensitivity (10cm to 2m) and connect additional lights (up to 200W total) for greater control. The H2 Sense provides a total package, with high efficacy (up to 113lm/W) and fire-rated safety. While bezels are sold separately, you can personalise the appearance to fit your space. It is ideal for homes, offices, and other settings where you want intelligent and efficient lighting.

Features & Benefits

Colour switchable between 2700K, 3000K and 4000K

PIR light for switching lights OFF that keep getting left ON

High efficacy up to 113lm/W

Hold time - adjust from 30secs up to 15 minutes

Sensitivity - Adjust from close range of 10cm up to 2 metres away

Lux Level - Adjust to keep the light OFF when there is enough natural daylight

Switched live out to other lights up to 200W (max 30 H2 Sense)

Fire-rated Downlight

Emergency options available with LEDEP14 or LEDEP15

Bezel sold seperately
