PS1524

24V Driver

PS1524

24V Driver

Product code: PS1524

Spec sheet IES File LDT File Flyer

Find accessories for this product

Product data

Warranty

3 Years

Ambient Temperature

45°C

Efficiency

>84%

Connection Input

0.5-1.5mm² max.

Connection Output

0.5-1.5mm²

Driver Output Voltage

24V DC

Driver Output Current

0.625A max.

Protection

Short circuit, overload & overheating

Power Factor

0.5

Product Input Current

0.08A

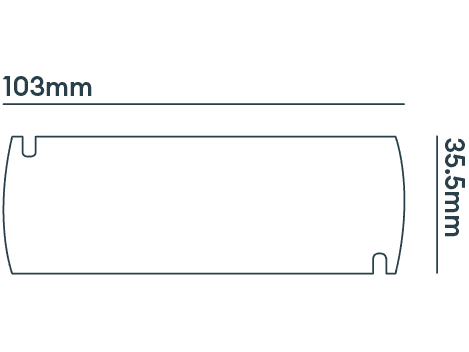

Technical drawing

Installation guides

Polar plot

Technical drawing

Installation guides

Polar plot

Add to project list

View Projectlist

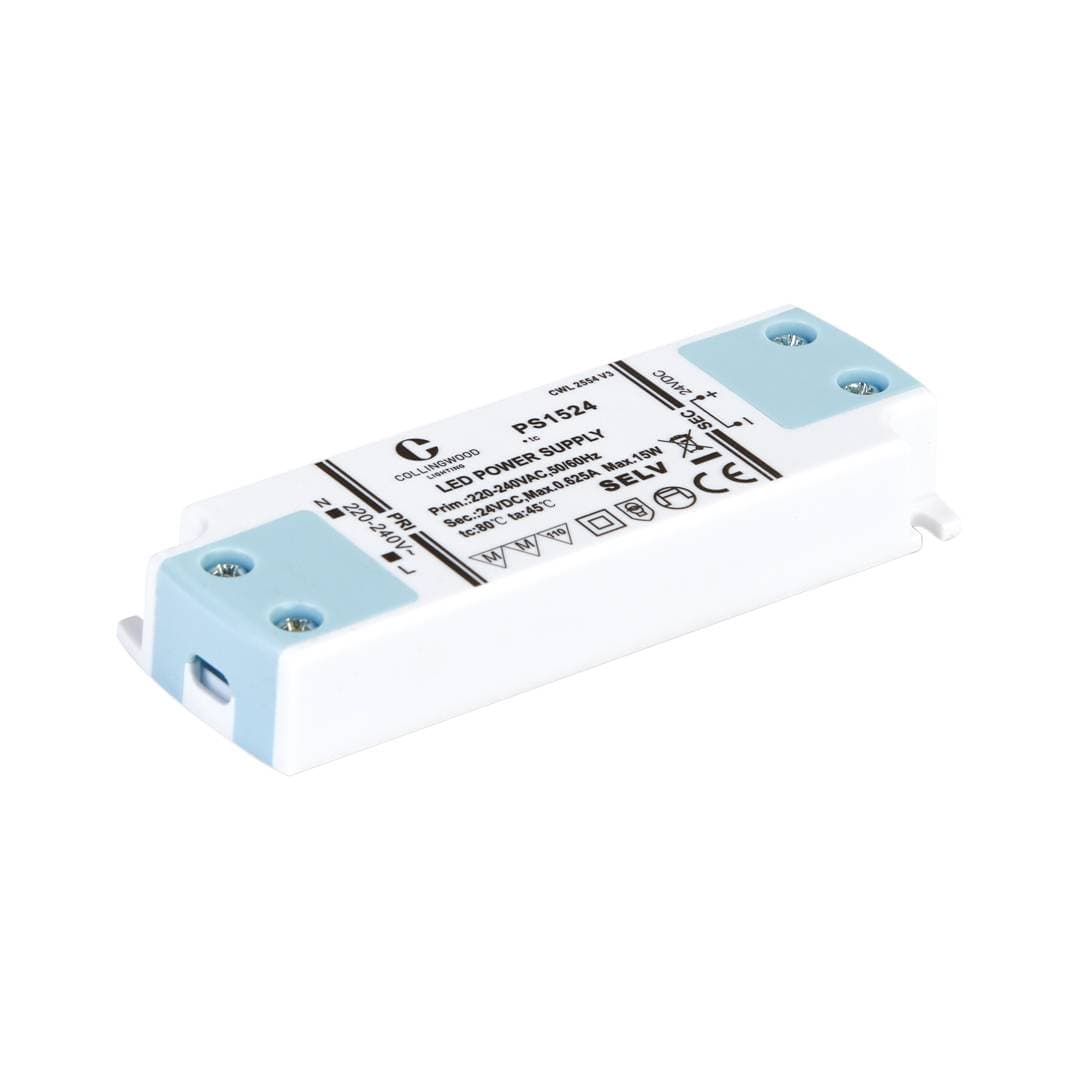

About the PS1524

A 15w, 24V LED power supply for Collingwood Lighting’s range of LED products. Wired in parallel, you can install up to 200 GL018 ground lights or 20m of LSC03 LED strip.By installing the PDCINT1-10v interface, it is possible to make the PS10024 a 1-10v dimmable power supply.
