PSDAL700M

700mA Driver

PSDAL700M

700mA Driver

Product code: PSDAL700M
Spec sheet IES File LDT File Flyer

Product data

Warranty
5 years
Ambient Temperature
-25°C - 50°C
Efficiency
90%
Connection Input
0.5-2.5mm² max.
Connection Output
0.5-2.5mm² max.
Driver Output Voltage
2-71V
Driver Output Current
700mA
Protection
Short circuit, overload & overheating
Power Factor
0.95
Product Input Current
0.25A

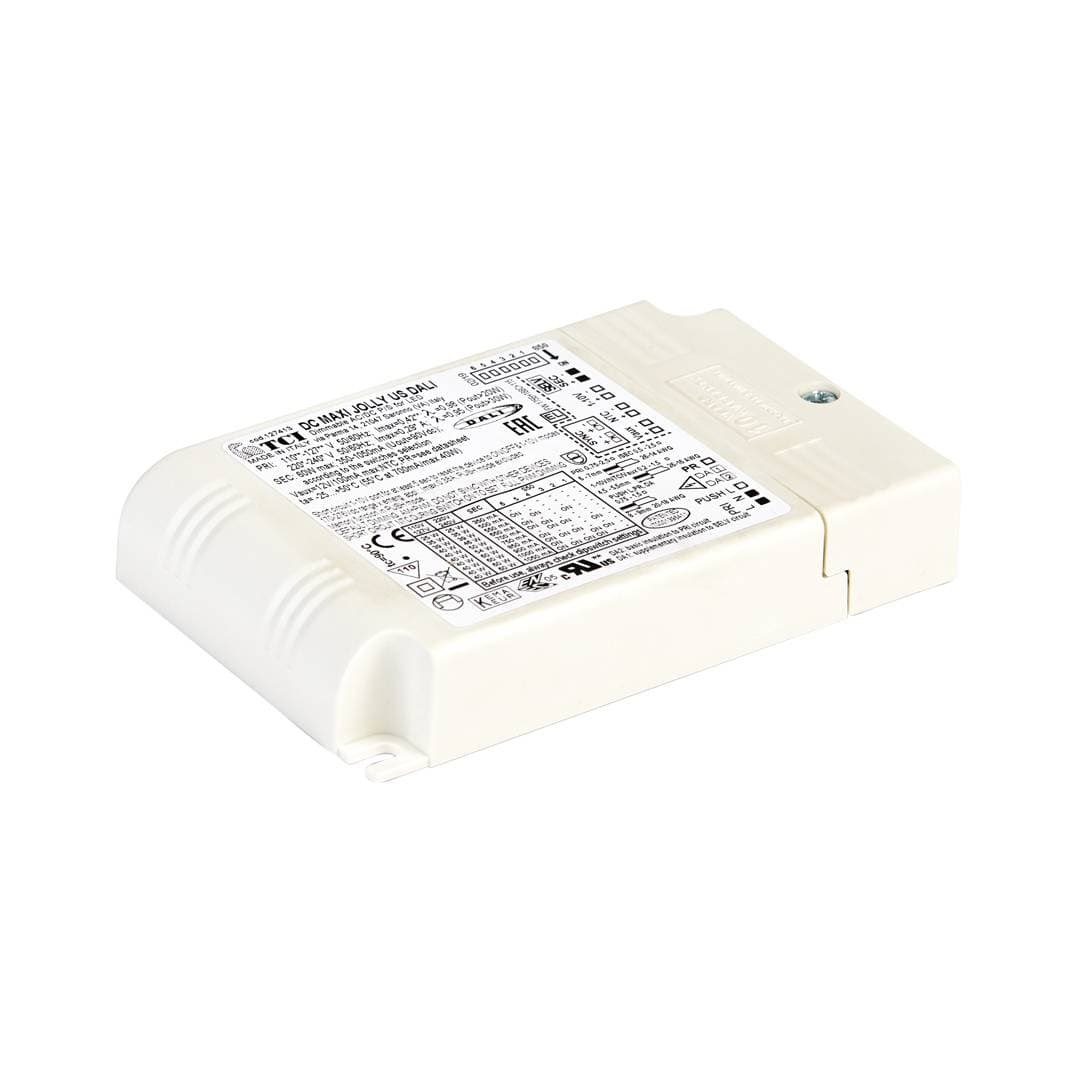

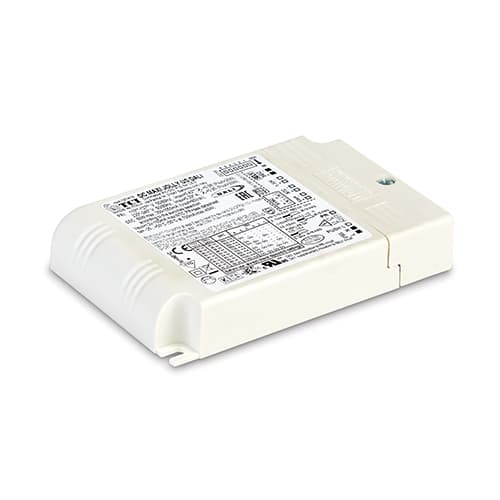

About the PSDAL700M

Constant current LED driver, dimmable with ‘push to make’ or 1-10V. Sync up to 10 units for dimming (sync cable included)

Features & Benefits

56W max input

70V, 700mA output

1-10V and DALI dimmable
