PSDIM700

700mA Driver

PSDIM700

700mA Driver

Product data

Warranty
7 years
Ambient Temperature
-25°C - 50°C
Efficiency
80%
Connection Input
0.5-2.5mm² max.
Connection Output
0.5-2.5mm² max.
Driver Output Voltage
2 - 71V
Driver Output Current
700mA
Protection
Short circuit, overload & overheating
Power Factor
0.95
Product Input Current
0.25A

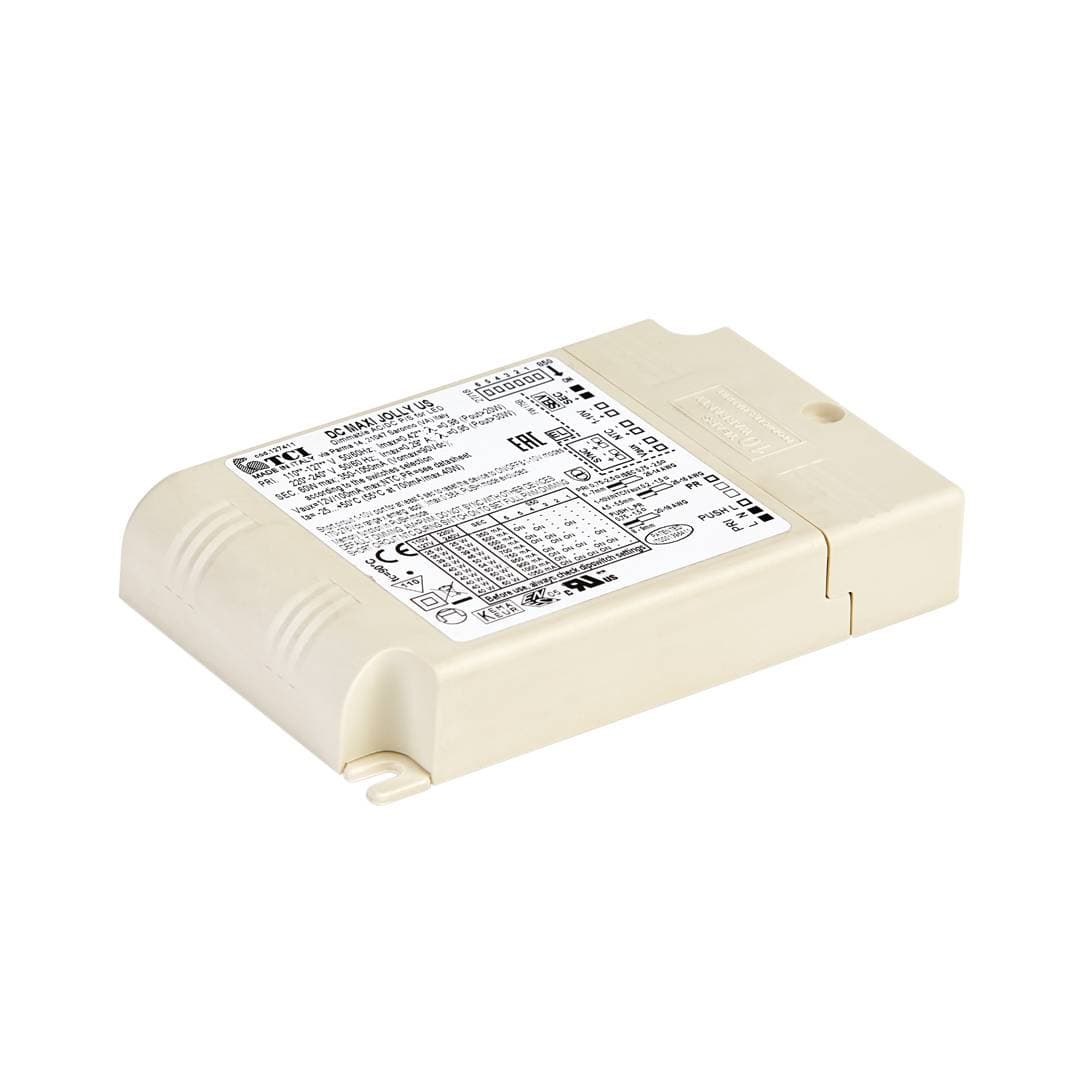

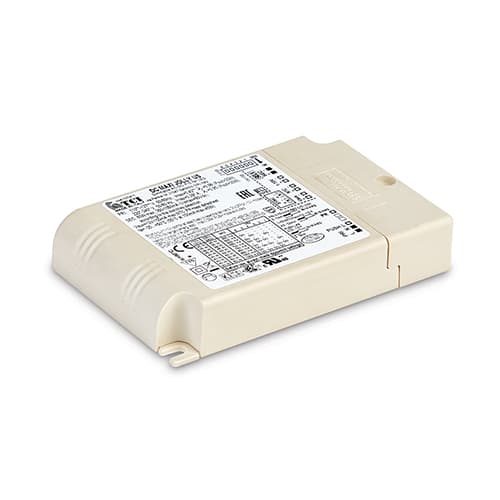

About the PSDIM700

A 50W constant current LED driver for 700mA Collingwood LED products. Fit up to 6 700mA LED products, which is also compatible with Collingwood’s new range of recessed LED retail lights. Fit up to two RDSM or SQSM products. The PSDIM700 can be controlled by a 1-10v analogue dimmer if you wish to dim.Link up to ten PSDIM700 to one 1-10v dimmer by using a 1m sync cable provided. An extended sync cable of 4m is also available as a separate product to further extend the distance between each power supply.

Features & Benefits

1-10V dimmable

IP20 rated

700mA
