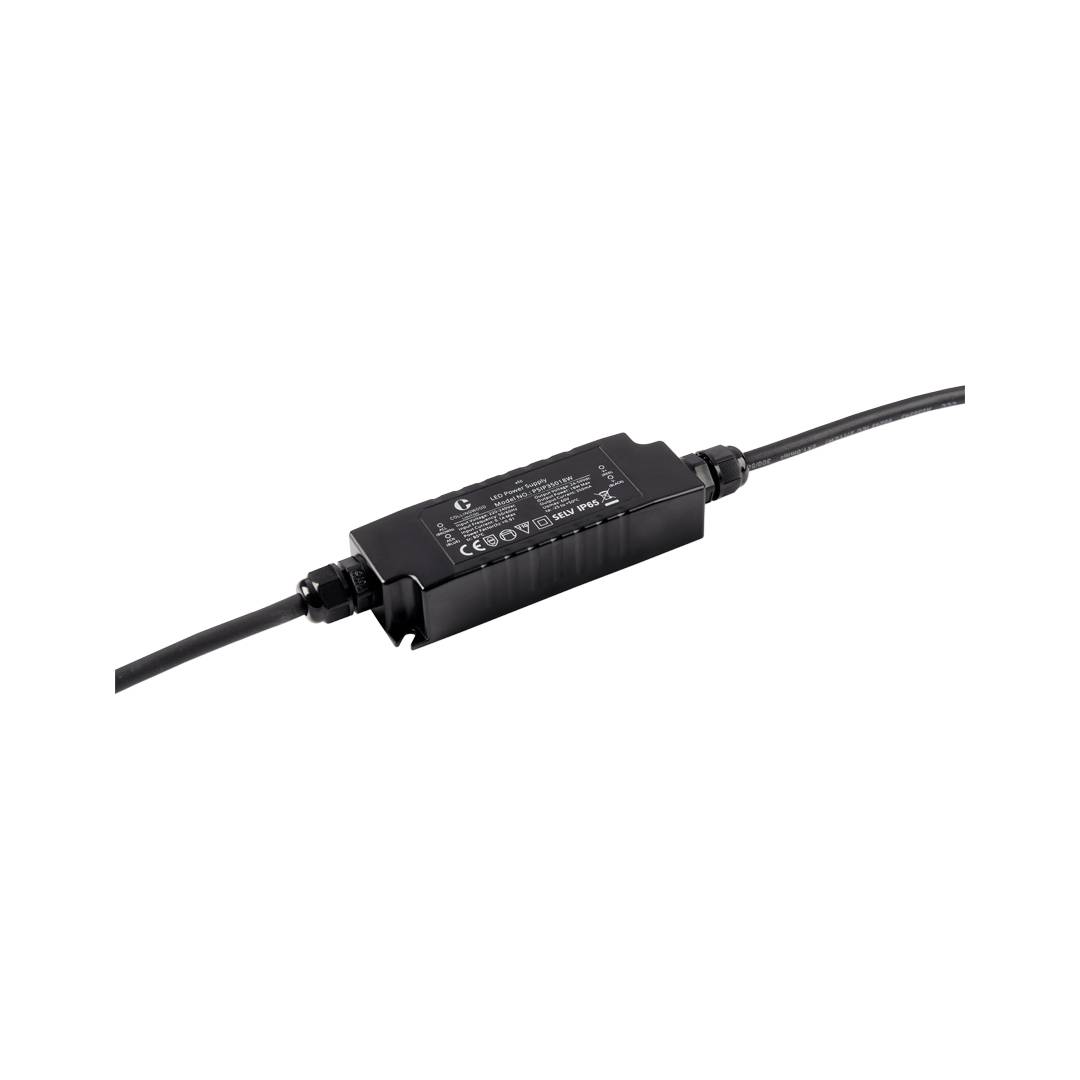

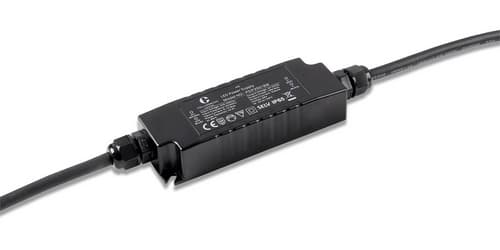

PSIP3509W

IP65 350mA 1W – 9W Driver

PSIP3509W

IP65 350mA 1W – 9W Driver

Product data

Warranty
5 years
Ambient Temperature
50°C
Efficiency
82%
Connection Input
0.2m, 1mm² 2-core cable Ø: 7mm
Connection Output
0.2m, 1mm² 2-core cable Ø: 7mm
Driver Output Voltage
2.5 - 25V
Driver Output Current
350mA
Protection
Short circuit, overload & overheating
Power Factor
0.9
Product Input Current
0.05A

About the PSIP3509W

The PSIP driver range has been designed specifically for Collingwood’s product range. They are suitable for use outdoors with the Landscape lighting range. Both 350mA and 700mA options are available, with a high wattage and low wattage range. For more information, review our driver matrix website page.

Features & Benefits

IP65 rated, making it ideal for landscape lighting

350mA Output

Non Dimmable

1W Min Input Wattage

9W Max Input Wattage

220-240VAC Input Voltage

Double Insulation

Slimmer and discreet design

Easy to install with improved round cabling
