PSMD3024

Mains Dimmable 30W 24V Driver

PSMD3024

Mains Dimmable 30W 24V Driver

Product data

Warranty
3 Years
Input
180-240V AC
Ambient Temperature
50°C
Efficiency
>83%
Connection Input
0.75-4.0mm² max.
Connection Output
0.5-4.0mm² max.
Driver Output Voltage
24V DC
Driver Output Current
1.25A
Protection
Short circuit, overload & overheating
Power Factor
0.95
Product Input Current
0.18A

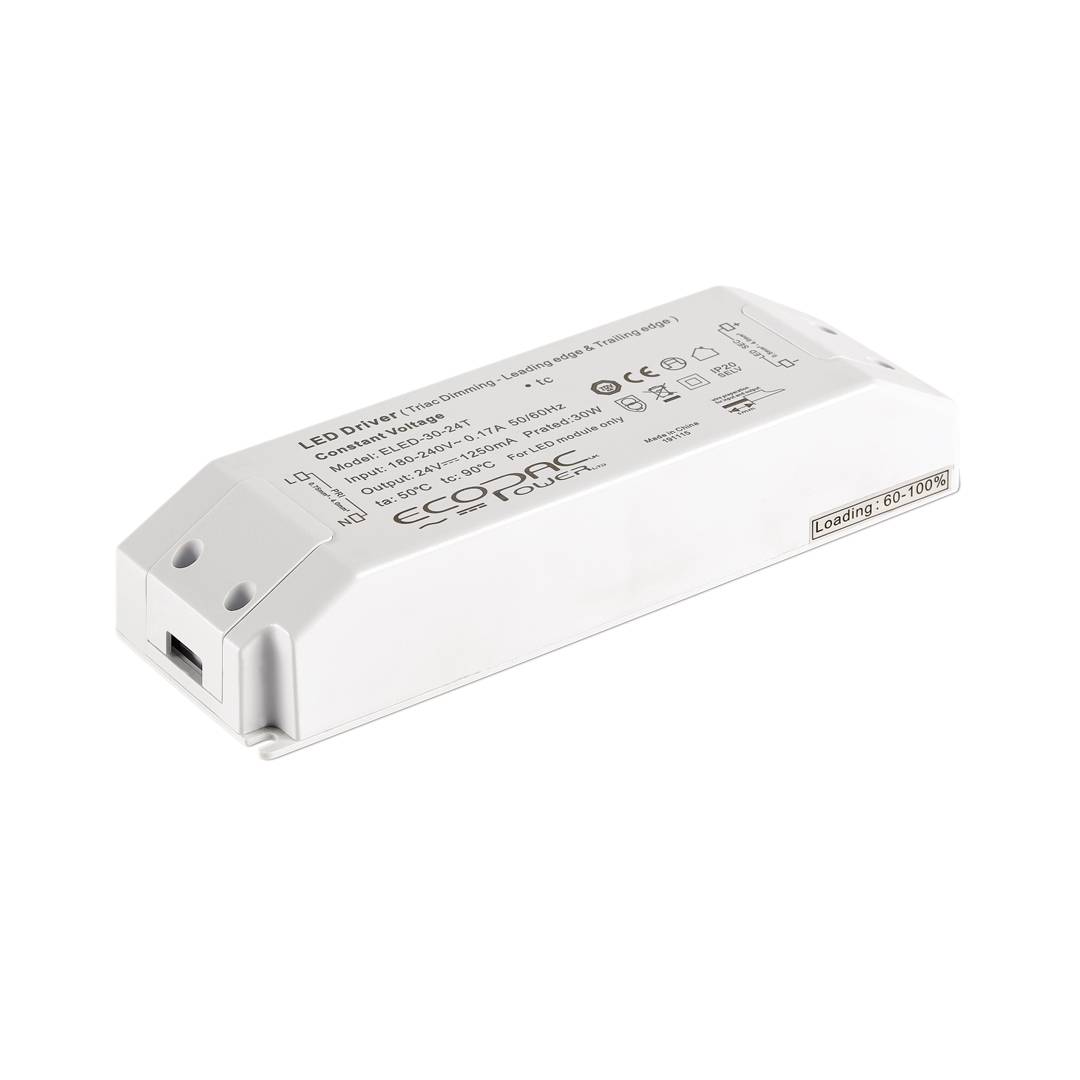

About the PSMD3024

This is an IP20 mains dimmable 24V driver, suitable for use with LED strip and the SL250 path light. The flicker free, slimline design ensures the product suitability for residential applications.

Features & Benefits

Ideal for LED strip and the SL250 path light

30W max load

24V input

Dimming range: 0-100%, Load: 60-100%

Protections: short circuit/ over loading /over current

Cooling by free air convection

Flicker free

Constant Voltage

Efficiency up to 83%
